Ultra-flex Small Diameter Stainless Steel tube
IHfiber ULTRAFLEX small diameter stainless steel is designed specifically asprotective casing for fiber optic cables. This material is very flexible or “floppy” tubing that permits full extension or compression without binding or friction. The configurations have high tensile strength and crush resistance-it will not spring open or unwind!
1.Various materials available: Stainless,Galvanized steel ,Aluminium, Copper
2.High tension,Good antidestructiveness, high temperature resistance,Impact resistance,Corrosion resistance.To prevent fiber broken if blind twist.
3.If special request for waterproof and explosionproof, we can add PVC jacket or braid outside of hose.
4.Ultra-flexible, soft and smooth. It’s easy for installation and position
5.No need to pre-buried pipe, laying construction instantly
6.Slippy inner tube, easy for feeding fiber optic cables
7.Advanced design,strong material.Excellent insulation and high flame resistance!
Details of tubes

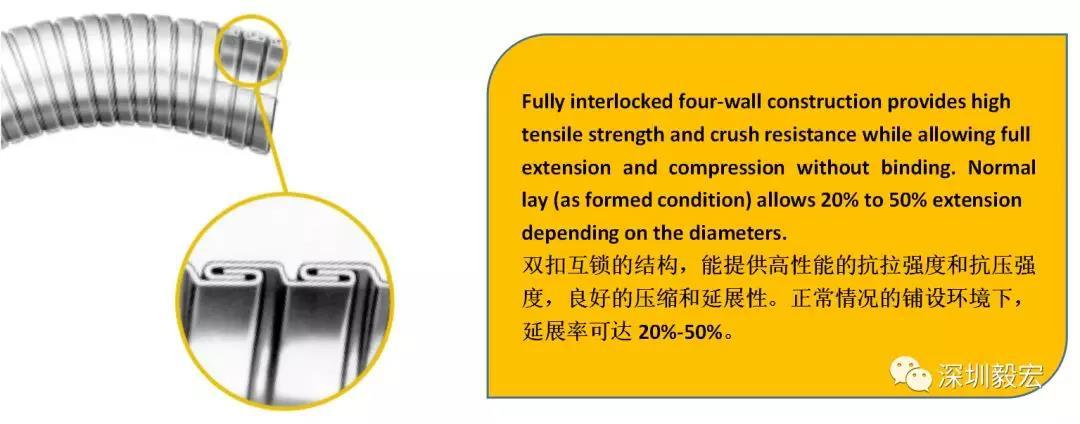

Ultraflex stainless steel tube is produced from a continuous metal strp, and is held in position by locking one leg of one profile over the leg of the adjacent profile.Normally, it designed with “interlocked” and “square locked”
Square Locked Hose

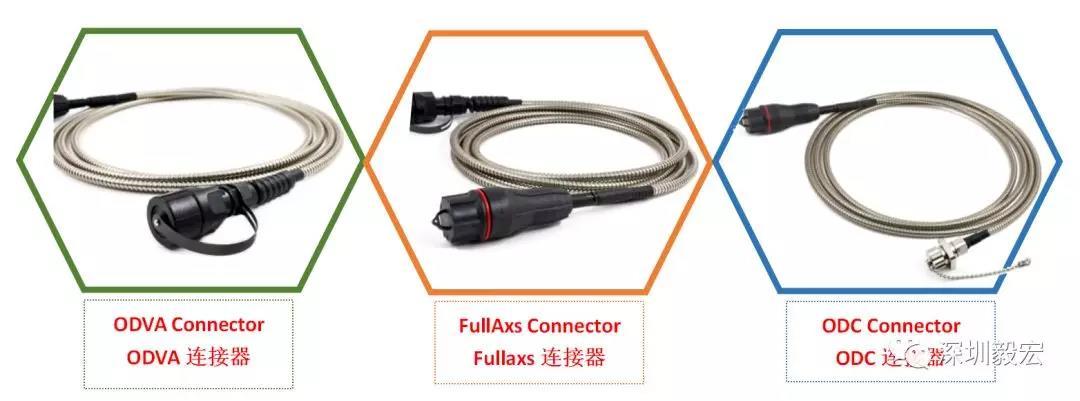

IHfiber FTTA products with Ultra-flex metal tube:
IHfiber waterproof fiber optic cable with Ultra-flex metal tube:
Tips:IHfiber has the capability to supply in bulk as bundles or coils or on reels. Cut lengths can be furnished with burr free cuts made by electrochemical or high-speed cutoff saws.Hose can be formed from all grades of austenitic stainless steels as well as other nickel alloys and galvanized or plated carbon steel. Hose can be added with various connectors, such as FC,SC,LC,ST,SMA905,SMA906.DIN,D4...etc.
